?選擇靠近水管系統中心的位置。必須在室內的水平地面上立式安裝。
Select a location near
the center of the water piping system. It must be installed indoors and in a
vertical position on a level surface.
熱水器應該安裝在不會凍結的地方。如果熱水器安裝在不具備條件的地方(如:閣樓,地下室,等等),可能要求水管和排水管加裝保溫層以防止被凍結。排水和控制裝置應該放置在容易接近的地方,以方便操作和維修。
The water heater should be located in an area not subject to
freezing temperatures. Water heaters located in unconditioned spaces (i.e.,
attics, basements, etc.) may require the water piping and drain piping to be
insulated to protect against freezing. The drain and control must be easily
accessible for operation and service.
不要把熱水器直接與按摩浴缸或熱浴缸直接連接。
Do not use this water
heater in conjunction with a spa or hot tub.
注:您所在地的地方法律和規定可能要求熱水器必須安裝在下部加熱元件離地最少18英寸的位置上。
Note: Local codes and requirements in your area
may require the water heater to be installed such that the bottom element is
elevated from the floor at least 18 inches.

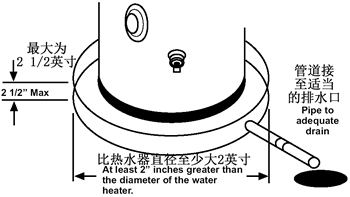

重要提示:安裝熱水器的位置應該位于當熱水器或連接管道出現泄漏時,不會導致熱水器附近區域或底層結構出現破壞的地方。由于水的正常的腐蝕作用,超過使用期限后,熱水器最終會產生泄漏現象。建議如下圖在熱水器下方安裝一個適當?shù)呐潘琛_@個排水盆有助于保護財產避免遭受由于熱水器正常產生的冷凝水,以及熱水器或管道連接部位泄漏可能造成的損失。這個盆的深度限制在2.5英寸以下,寬度限制在比熱水器外殼寬2英寸以下,排水盆的排泄管道要接到排水口處。室外排水口在冰凍氣溫下可能會凍結并堵塞排水管。這種管道口徑至少應該是3/4營村,并要有適當?shù)膬A斜度。
Important: The water heater should be located in an area where leakage of the tank or connections will not result in damage to the area adjacent to the water heater or to lower floors of the structure. Due to the normal corrosive action of the water, the tank will eventually leak after an extended period of time. It is recommended that a suitable drain pan be installed under the water heater as shown below. This pan is to protect the property from damage which may occur from normal condensate formation on the tank or leaks in the tank and pipe connections. The pan must limit the water level to a maximum depth of 2-1/2 inches and be two inches wider than the heater and piped to an adequate drain. Locate the water heater near a suitable indoor drain. Outdoor drains are subject to freezing temperatures which can obstruct the drain line. The piping should be at least 3/4"ID and pitched for proper drainage.
與本熱水器連接的水所造成的任何損害,無論如何制造商都不承擔任何責任。
Under no circumstance will the manufacturer be held liable for any water damage in connection with this water heater.

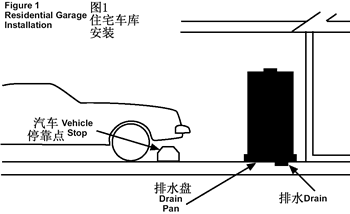

注:應該將熱水器安裝在不會被移動的汽車或區域水災造成物理損害的地方。
Note: The water heater shall be located so it is
not subject to physical damage by moving vehicles or area flooding.
注:應該把熱水器職稱、錨固或用帶子系牢,以避免地震發生時出現移動。請與當?shù)氐挠嘘P(guān)部門聯系索要有關的法律規定,或撥打1-800-999-9515索要說明書。
Note: The water heater must be braced, anchored,
or strapped to avoid moving during an earthquake. Contact local utilities for
code requirements in your area or call 1-800-999-9515 and request
instructions
